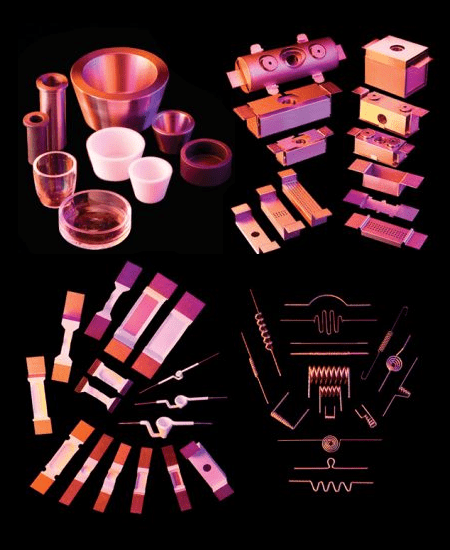

With over 62 years of working with refractory metals, we can fabricate a wide range of parts designed for use in the vacuum deposition process.
Although we primarily manufacture parts for thermal evaporation, we also offer other vacuum components including: evaporation materials, electrodes, e-beam filaments & liners, heat shields, sputtering targets, and more.
R.D. Mathis Company sources 100% of its material from well-known US suppliers. Fabrication is all performed in our California facility. Our material vendors process their ore in the US, and this helps build our resilient supply chain.
When designing a thermal evaporation process, you need to know if your power supply can handle resistively heating a source — this information can be found in our power requirement table.
How do I use this table? Do these values represent maximum rated temperatures?
NO: This table shows the amperage needed to reach a specific temperature. These are based on experimental results and can vary, but it acts as a solid baseline estimate.
These are current-driven components. Thermal output is changed by adjusting the amperage by the same percent as the temperature.
Example:
S1-.005W Boat
101 Amps, 1800°C
To reach 90% of the temperature (≈1600°C), the current would be 101 Amps * 90%, or about 91 Amps.
This table, and other R.D. Mathis Company publications, can be publicly found by accessing our technical library.
We provide our technical support for vacuum thermal evaporation processes. For further inquiries and questions, please contact us at tech@rdmathis.com with specific details.
Do you have any comments or concerns you want to share with us?
Please give us a call for further questions about The Evaporator.
Phone: (562) 426-7049
Email: info@rdmathis.com
Website: rdmathis.com
| Carnegie Mellon University |
(Image: Carnegie Mellon University)

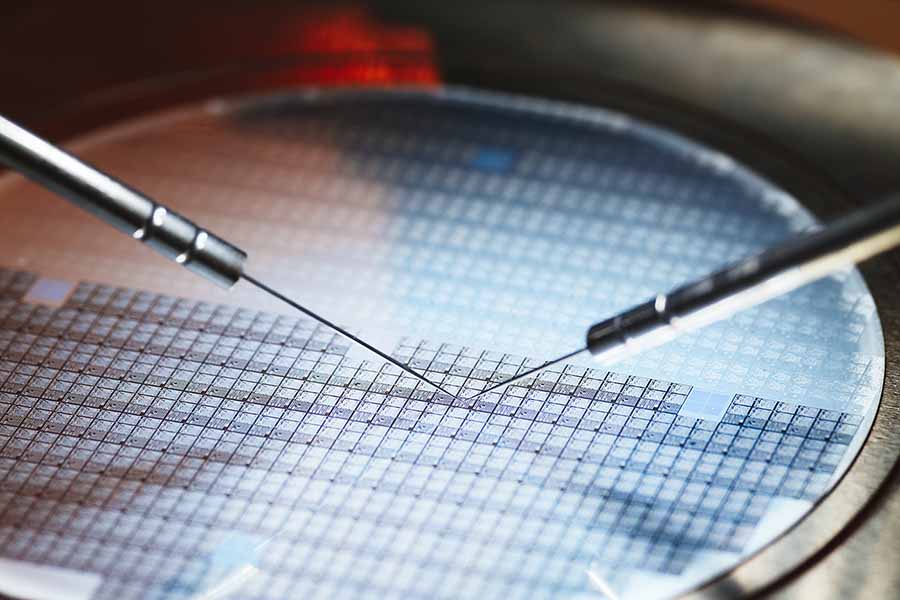

A group of researchers recently devised a method allowing them to create large amounts of a material required to make 2d semiconductors with record high performance.
| Lawrence Livermore National Laboratory |
(Image: Lawrence Livermore National Laboratory)

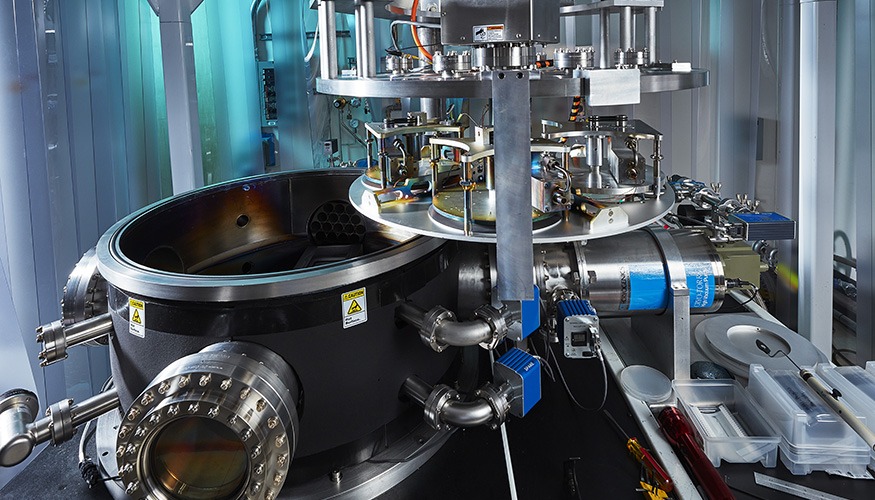

A team of researchers from LLNL, Université Paris-Saclay, and Lawrence Berkeley National Laboratory describe their work to provide more accurate optical constants for aluminum.
| Institut National de la Recherche Scientifique |
(Image: Scientific Reports, 2024)

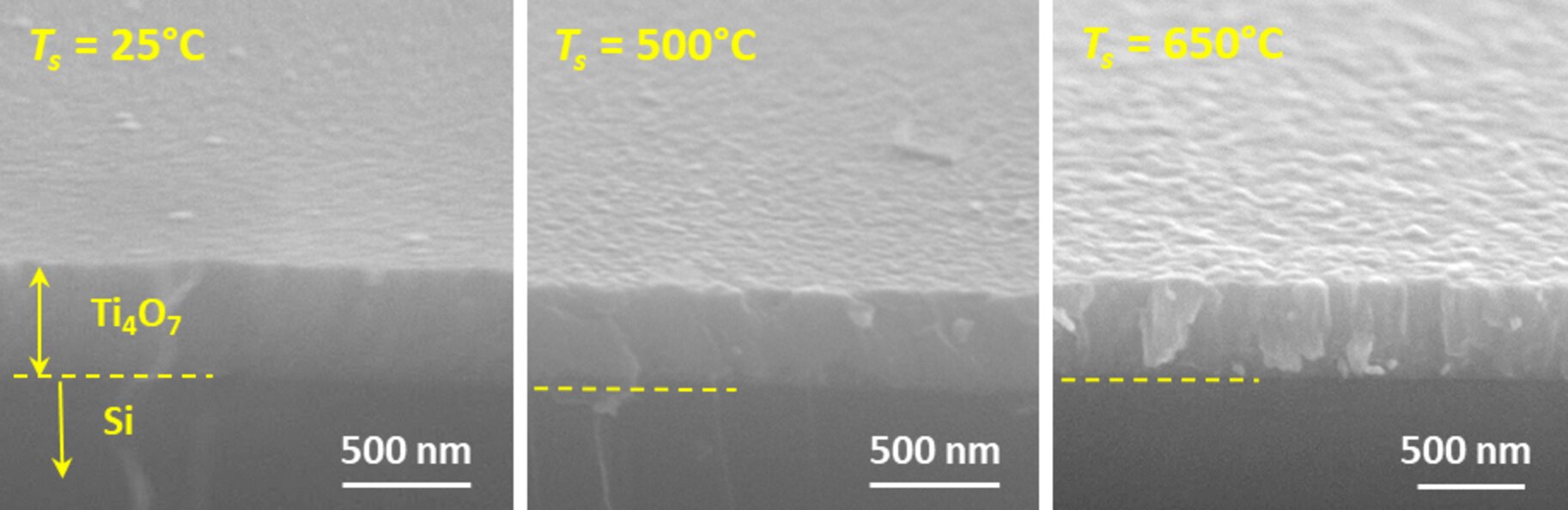

Professor El Khakani and his team at the Énergie Matériaux Télécommunications Research Center have developed a new photothermal material that converts sunlight into heat with unmatched efficiency.
